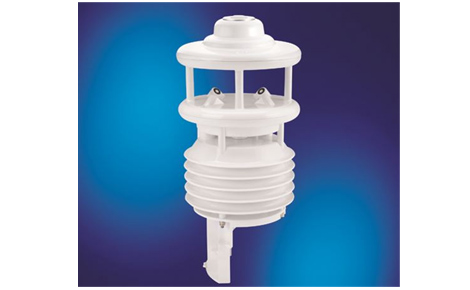

Lufft Weather Sensor, Electronic Compass, WS-502, Item: 8375-U10

Integrated design with ventilated radiation protection for measuring: Air temperature Relative humidity, Air pressure, Wind direction, Wind speed, Solar Radiation.

Measurement data are available for further processing in the form of a standard protocol (Lufft-UMB protocol). All in One / Aspirated temperature/humidity measurement.

Open communication protocol:

• UMB-ASCII
• UMB-Binary
• SDI-12
• MODBUS
• Analog outputs in combination with 8160-UDAC
• Third-Party-Rain gauge sensors are compatible: 0.1 mm, 0.2 mm, 0.5 mm, 1mm heated and unheated.

One external temperature or rain sensor is connectable. Comes with 10m cable.

Download our Information Sheet here.

Features

Technical Data

Additional Equipment

• Relative humidity is measured by means of a capacitive sensor element; a precision NTC measuring element is used to measure air temperature. Ultrasonic sensor technology is used to take wind measurements.

• WS502-UMB	8375-U10
  Dimensions	Ø approx. 5.09" (150mm), Height approx. 12.5" (317mm)
  Weight	approx. 3¼ lbs (1.5kg)
  Temperature
  Principle	NTC
  Measuring range	-58...140°F (-50...60°C)
  Accuracy	±0.2°C (-4...122°F/ -20°C...+50°C), otherwise ±0.5°C (>-22°F/-30°C)
  Relative humidity
  Principle	capacitive
  Measuring range	0…100% RH
  Accuracy	±2% RH
  Radiation
  Response Time (95%)	<1s
  Spectral range	300 to 1100 nm
  Measuring range	1400 W/m2
  Air Pressure
  Principle	MEMS capacitive
  Measuring range	300...1200 hPa
  Accuracy	±0.5hPa (0...+40°C)
  Wind direction
  Principle	Ultrasonic
  Measuring range	0…359.9°
  Accuracy	<3° RMSE >1.0 m/s
  Wind speed
  Principle	Ultrasonic- 2.4 Ghz
  Measuring range	0…75m/s
  Accuracy	±0.3m/s or ±3% (0…35m/s) RMS of reading, whichever is greater ±5 % (> 35 m/s) RMS
  General Information
  Heating	20 VA at 24 VDC
  Protection type housing	IP66
  Interface	RS 485 2-wire, half duplex
  Operating power consumption	12-24 VDC ±10%
  Operating humidity range	0...100%
  Operating temperature range	-58...140°F (-50...60°C)

• Accessories
  Click on Below Links to Purchase or See additional Info.
  Surge protection	8379-USP, Request by Quote.
  Power supply 24V/2.5A	8366-USV4
  Power supply 24V/4A	8366-USV1
  Traverse Mounting Bracket	8367-TRAV1
  Digital-analog-converter	8160-UDAC
  Temperature Sensor WT1	8160-WT1
  Rain sensor WTB100	8353-10
  WS Cables	8370-UKAB (several lengths available)
  Tripod, Portable Tripod Mast 6 to 10 ft	ME905
  Converter Cable RS485 to USB	8160-RS485USB
  GPRS/GSM modem with Camera Port	8160-MODVIOLA
  RS232 Connection Cable	8160-KAB
  Netronix node with Thiamis ICU	RN500ICU820
  Surge Protector for night vision cameras	8379USPRJ45
